IDOM-New Campus REE 先節能 再發電

  • 作者:
  • 發布時間:
  • 人氣:313
  • 收藏:1人
檢舉

圖片提供/IDOM

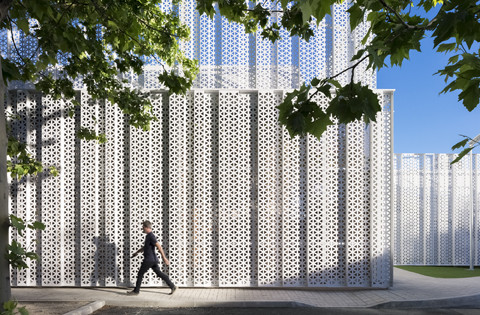

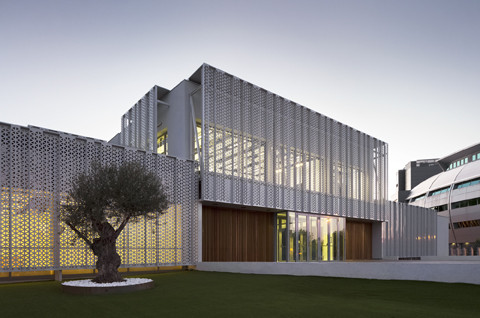

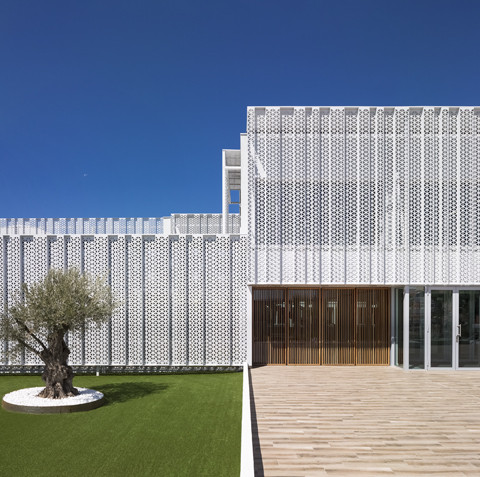

擅長執行公共建築的西班牙建築師事務所IDOM這次又受到當地國家電力組織(Red Eléctrica de España, REE)的委託,在馬德里Tres Cantos科技園區重新整合並以現代化的方式改造二棟舊大樓,以提供新的訓練空間及科技公司進駐的需求。IDOM以簡潔線條且通透的方式,以白色打孔鋁板覆蓋在原大樓外層,不僅能引入緩和的日光,減少人造光的使用,從外部亦可一覽內部的活動情形及各空間所在。在事務所的重整下,提供了這處新空間-New Campus REE更多的工作場所、輕薄透明的外觀、辨識度高的交流空間,以及一大實驗室及研發測試空間。


圖片提供/IDOM

圖片提供/IDOM

New Campus REE屋頂的隔絕材料,外立面中遮陽的鋁製打孔板,都是在最低能源消耗的考量下所設計。事務所也設計了一套名為GEOTABS的地熱活化系統,而為了整合了建築內現有的單向地熱系統,事務所也研發了可相互整合的設計,在市場上尚屬創舉。在改建的過程中,事務所亦把對環境的衝擊控制在最小的範圍內,不但符合了該公司REE的環保標準,也禁的起一般環保標準的考驗。


圖片提供/IDOM

圖片提供/IDOM

圖片提供/IDOM

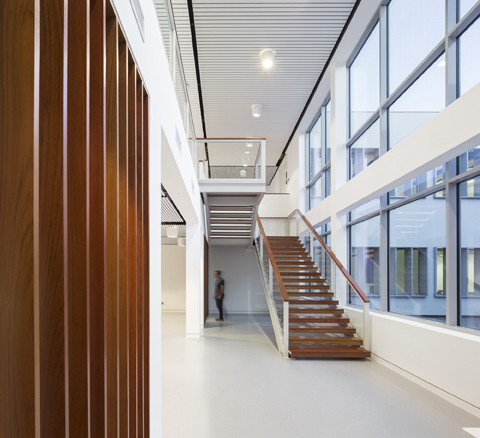

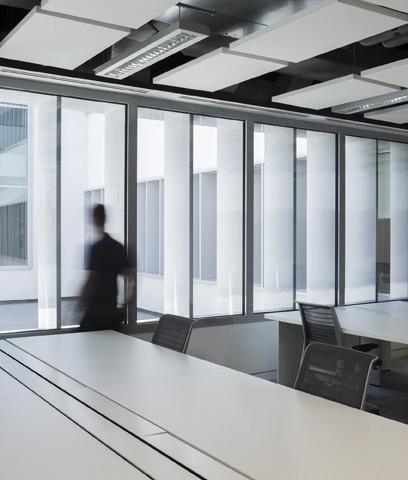

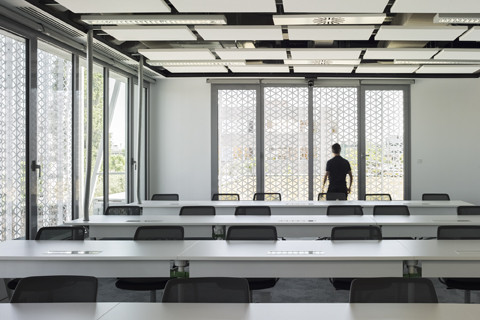

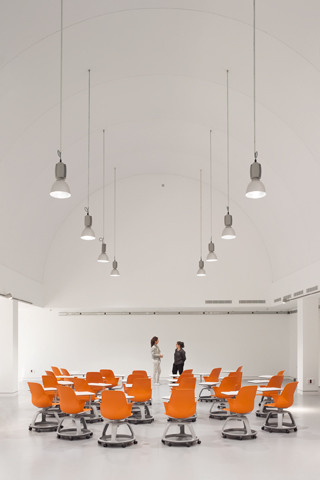

內外白色為主的New Campus REE大樓,事務所也特地以不同顏色傢俱來呈現不同功能區的功用,像是會議室的橘色位椅,樓梯間的木料配置,或是會議室中大片藍色電視板,讓使用者一眼就能了解各功能區的位置所在,同時也在冰冷的白底建築中增添了不少活潑的氛圍。


圖片提供/IDOM

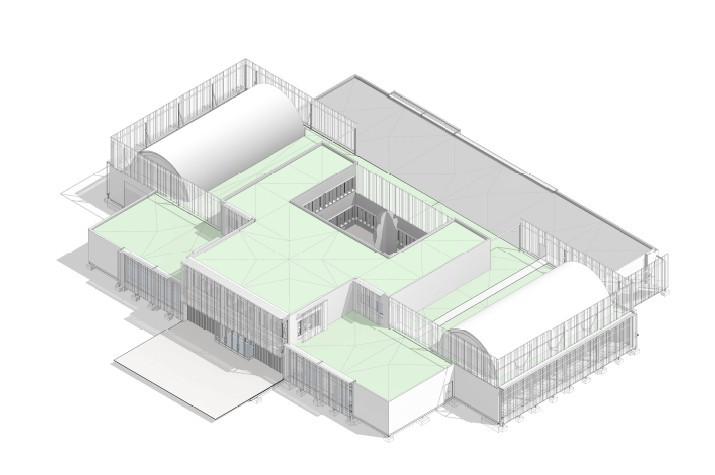

3D立體圖;圖片提供/IDOM

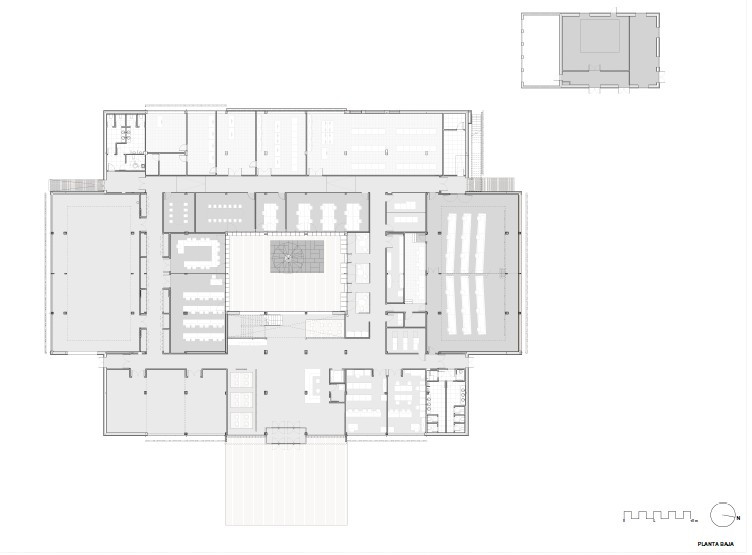

一樓平面圖;圖片提供/IDOM

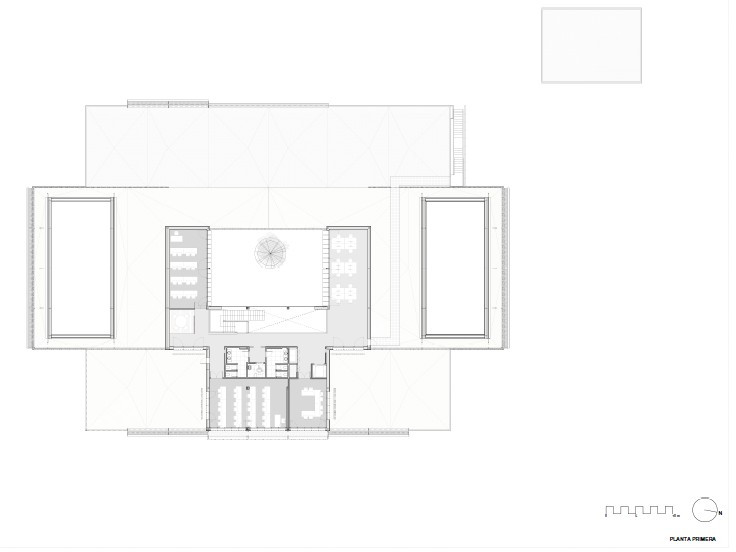

二樓平面圖;圖片提供/IDOM

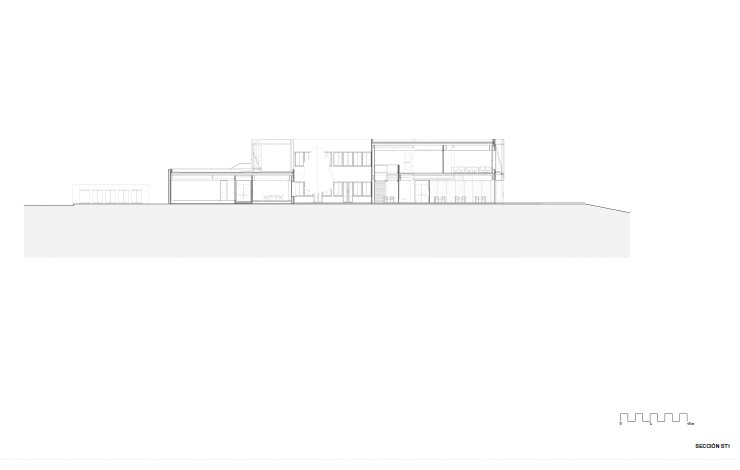

剖面圖;圖片提供/IDOM

IDOM
OUR COMMITMENT, YOUR SUCCESS
“Our goal is to provide our Clients with an excellent top quality service, drawing on our technological knowledge, which is up there with the best, while offering efficient and innovative solutions to solve their problems.“


【相關建築走讀】
>蘇琨峰帶路~西班牙建築:2017普立茲克建築獎作品參觀、世界建築獎總部、高第傳奇、三大必去酒莊11日
 https://travel.liontravel.com/Detail?NormGroupID=3268801d-328c-47c6-9a5f-eaa1671ddf85&Grou    ID=18ES517KL-T
=====================
編譯/蘇琨峰 圖/IDOM

更多國外建築脈動請上【跟著建築去旅行】
https://solomo.xinmedia.com/archi/collect/topicsview/50153

旅遊看建築、建築知文化、文化說歷史,更多建築知旅請上【欣建築】
https://solomo.xinmedia.com/archi/collect/topicsview
==================
蘇琨峰/Andre

一隻喜愛新事物也對舊事物固執的牡羊。台北工專土木工程科、雲林科技大學營建工程結構組、墨爾本大學經濟與商業研究所,主修商業與資訊管理。喜歡看建築、旅行探險、攝影、網球、及擔任爵士樂團薩克斯風手。目前為《欣建築/國際脈動》編譯、文字記者、規劃欣建築國外建築相關行程及國際領隊。

Editor Andre

Article source
Red Eléctrica de España – REE (operator of the Spanish national electricity grid) has appointed IDOM to carry out the integral refurbishment of two buildings located in the Tres Cantos Technology Park (Madrid). The project includes the integral rehabilitation of the buildings, adapting them to the new training and technological needs of the company, by modernizing the buildings using an envelope that meets the energy efficiency requirements. The distribution of the new CAMPUS aims to increase the quality of the work spaces and classrooms, as well as achieving efficient organization, maximizing the available space, creating diaphanous and recognizable access zones, reducing and clarifying the zones of the floors for communal areas. A large laboratory and test area has been included, as a space to boost the R&D+I activities of REE.

The buildings are being rehabilitated in their entirety considering energy efficiency, in terms of the design of the insulation of the roof, façades and solar protection. A highly technical solution has been introduced. A GEOTABS solution has been designed which includes the thermoactivation of the existing structure in combination with the geothermal use of the grounds as the only production system. The existing structure is a common unidirectional structure, therefore, to thermoactivate the existing structure, IDOM has had to innovate as no solutions were available in the marketplace. Three different technologies were tested on site (shotcrete mortar, gunite mortar, and gypsum application). Finally, the construction of building was underway ratifying exceptional results, both in terms of comfort and energy efficiency. The environmental impact of the rehabilitation works is minimal, meeting the standards of Red Eléctrica and today’s society.
==================
Editor/Andre           Photos/IDOM


More architecture works abroad, here you go 【International】
https://solomo.xinmedia.com/archi/collect/topicsview/50149

More architecture projets, here you go 【Xin Archi】
https://solomo.xinmedia.com/archi/collect/topicsview
====================
Andre

A male Aries, loves learning new things and being nostalgic to old things. Academic background: Bachelor of Construction Engineering Department at National YunTech University, Taiwan and Diploma of Graduate School of Business and Economics at University of Melbourne. With character of a little introvert, addicting to architecture, photography, tennis, Jazz music and saxophone and being the translator of Xin Architecture/ International, reporter, holder of activities and international tour leader.
